Connecting to an eFlag

Modified on Wed, 23 Jul at 2:30 PM

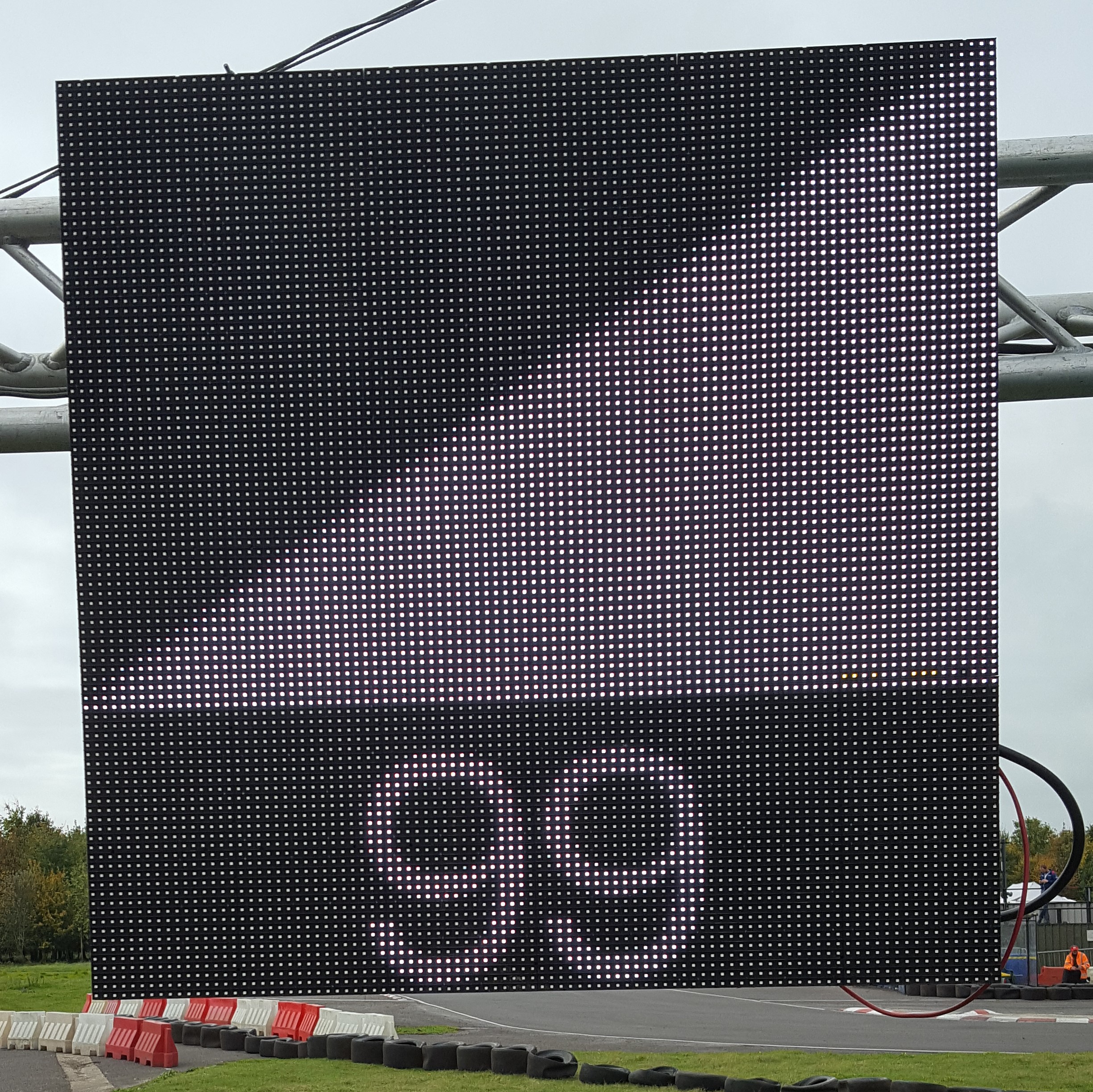

The Alpha Timing System can be connected to an eFlag so that when you issue warnings or penalties to drivers they will be displayed automatically on the eFlag.


The Alpha timing system is compatible with most display panels that run from an HDMI feed. They can be via two options:

  • Via an Alpha eFlag controller if installed at the circuit (Standard Model)

  • Or via a webpage connected to the timing, running a TV Timing screen and special playlist.

Note: The system has limited legacy support for the CP5200 display connected via an RS232 COM Port.



To create a TV Timing Screen and Playlist for an eFlag, please see this page.


Connecting via an Alpha eFlag Controller (Standard Model)



To connect to an Alpha eFlag you will need to know the Alpha eFlag controller's IP address and enter this into the Display Settings of the Timing App (Gear icon > Displays)



To use an eFlag make sure the slider set to Enabled.


The model should be set to Standard.


Enter the IP address of the Alpha eFlag Controller or the PC displaying the eFlag playlist.

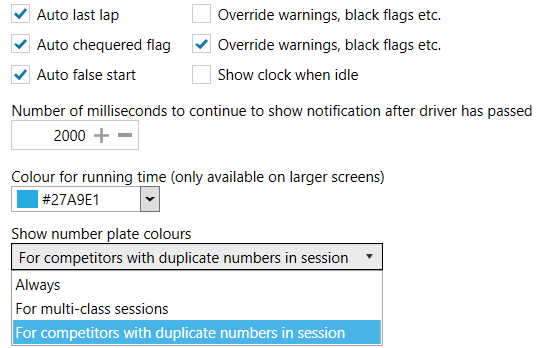

You can also choose whether the eFlag automatically displays the last lap board or Chequered flag, the number of milliseconds to show a notification after a driver has passed and the colour of the time (double width displays only).


You also have the option of showing the number plate colours as configured in the Class Type settings.

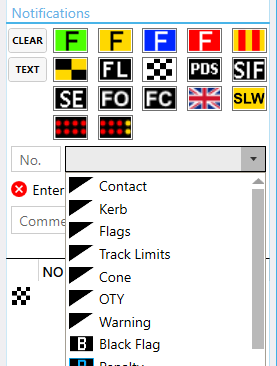

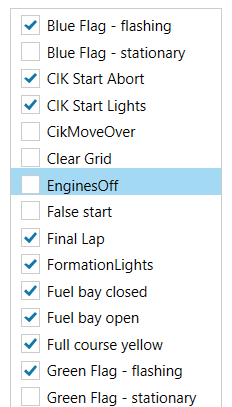

You can select what type of flags are available by ticking the corresponding boxes on the right. These will then be shown in the notifications panel when timing a session (left image).



Connecting to an eFlag via a TV and Playlist

To connect to a HDMI display device, you will need to create a special eFlag playlist and configure the display as an Alpha TV. Please see the article on Setting up an Alpha eFlag via a TV Playlist.



Your eFlag is now ready to be tested and used. To see how to use the eFlag from the Timing app, please see this guide on Using an Alpha eFlag and to control the eFlag from another device, please see this guide on Accessing the Timing App remotely (via a Web Page)


If you cannot connect to the eFlag please see this troubleshooting guide.
